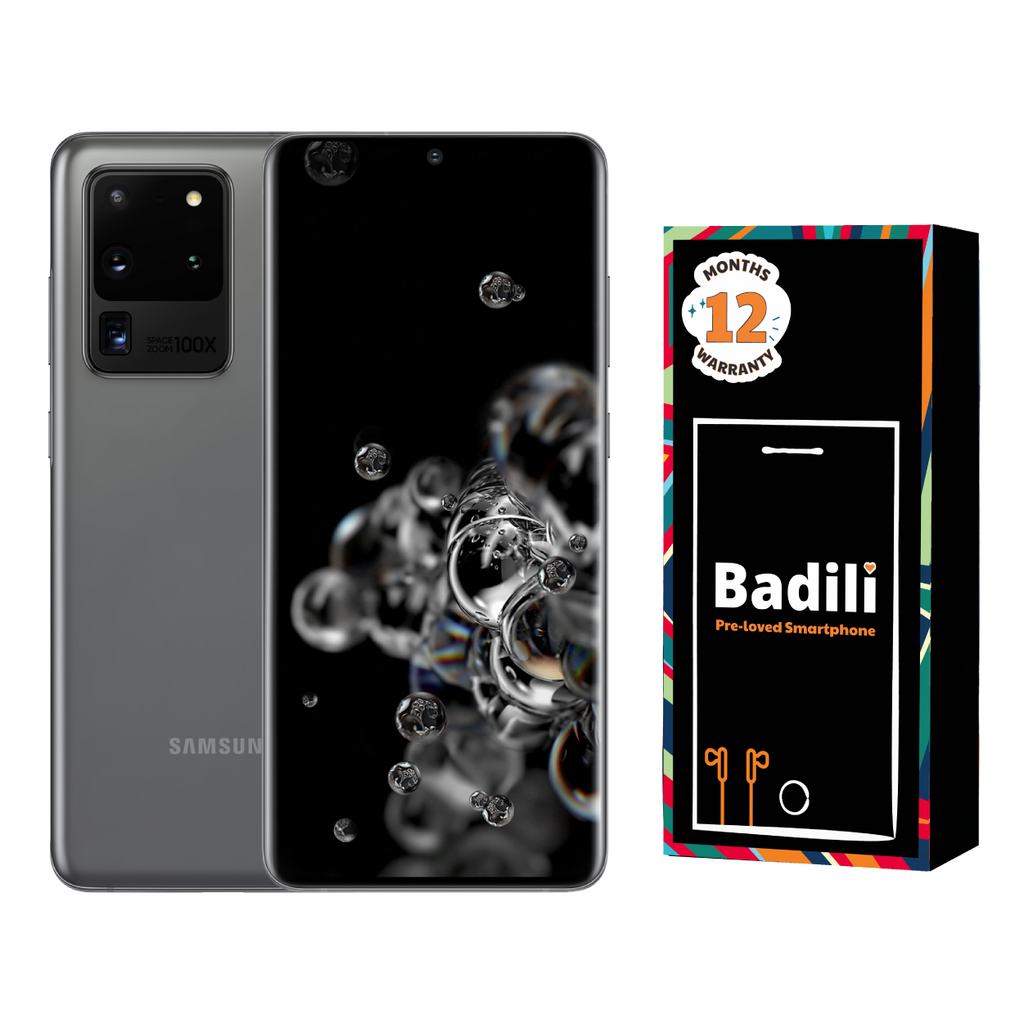

Samsung Galaxy S20 Ultra , 5G
Network & Connectivity
-
Technology: GSM / CDMA / HSPA / EVDO / LTE / 5G
-
WLAN: Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, Wi-Fi Direct
-
Bluetooth: 5.0, A2DP
Launch
-
Announced: February 11, 2020
-
Status: Available; released March 6, 2020
Body & Durability
-
Dimensions: 166.9 x 76 x 8.8 mm (6.57 x 2.99 x 0.35 in)
-
Weight: 222 g (7.83 oz)
-
Build: Glass front (Gorilla Glass 6), glass back (Gorilla Glass 6), aluminum frame
-
SIM Options: Nano-SIM + eSIM OR Dual Nano-SIM
Display
-
Type: Dynamic AMOLED 2X, 120Hz, HDR10+, 1400 nits peak brightness
-
Size: 6.9 inches (~114.0 cm², ~89.9% screen-to-body ratio)
-
Resolution: 1440 x 3200 pixels, 20:9 ratio (~511 ppi density)
-
Protection: Corning Gorilla Glass 6
-
Refresh Rate Modes: 120Hz at FHD / 60Hz at QHD
Platform & Hardware
-
OS: Android 10
-
Chipset:
-
Global: Exynos 990 (7 nm+)
-
USA: Qualcomm SM8250 Snapdragon 865 5G (7 nm+)
-
-
CPU:
-
Global: Octa-core (2x2.73 GHz Mongoose M5 & 2x2.50 GHz Cortex-A76 & 4x2.0 GHz Cortex-A55)
-
USA: Octa-core (1x2.84 GHz Cortex-A77 & 3x2.42 GHz Cortex-A77 & 4x1.80 GHz Cortex-A55)
-
-
GPU:
-
Global: Mali-G77 MP11
-
USA: Adreno 650
-
Memory
-
Card Slot: microSDXC (uses shared SIM slot)
-
Internal Storage & RAM (UFS 3.0):
-
128GB / 12GB RAM
-
256GB / 12GB RAM
-
512GB / 16GB RAM
-
Cameras
-
Main Camera Setup:
-
108 MP, f/1.8 (wide), PDAF, OIS
-
48 MP, f/3.5 (periscope telephoto), PDAF, OIS, 4x optical zoom, 10x hybrid zoom
-
12 MP, f/2.2 (ultrawide), Super Steady video
-
0.3 MP, TOF 3D (depth)
-
-
Main Camera Features: LED flash, auto-HDR, panorama
-
Main Camera Video: 8K at 24fps, 4K at 30/60fps, 1080p at 30/60/240fps, 720p at 960fps, HDR10+, stereo sound recording, gyro-EIS & OIS
-
Selfie Camera: Single 40 MP, f/2.2 (wide), PDAF
-
Selfie Camera Features & Video: HDR, 4K at 30/60fps, 1080p at 30fps
Sound
-
Loudspeaker: Yes, with stereo speakers (tuned by AKG)
-
3.5mm Jack: No
-
Audio Features: High-bitrate audio support
Features & Sensors
-
Sensors: Fingerprint (under display, ultrasonic), accelerometer, gyro, proximity, compass, barometer
-
Additional Features: Samsung DeX and Samsung Wireless DeX (desktop experience support), ANT+
Battery & Power
-
Type: Li-Ion 5000 mAh (non-removable)
-
Wired Charging: 45W wired, PD3.0
-
Wireless Charging: 15W wireless (Qi)
-
Reverse Wireless Charging: 4.5W
Misc & Benchmark Performance
-
Colors: Cosmic Grey, Cosmic Black
-
Models: SM-G988, SM-G988U, SM-G988U1, SM-G9880, SM-G988B/DS, SM-G988N, SM-G988B, SM-G988W, SCG03
-
Model Name: Samsung Galaxy S20 Ultra 5G
-
Measured Brightness: 894 nits max
-
Loudspeaker Volume: -23.2 LUFS (Very good)
